TD-3016H1-A1
16 CH NVR
TD-3016H1-A1 series supports 16 CH 8MP/6MP/5MP/4MP/3MP/1080P/
1280×1024/960P/ 720P high definition IP video input, whichadopts
the advanced SOC technique to ensure high definition recordingin
each channel and realize outstanding robustness of the system.
TD-3016H1-A1 series supports 16 CH IP input, simultaneous 16 CH
playback, and 4K high definition display. The series of product can meet
different security requirements of home, financial, commerce, enterprise,
transportation and government, etc.
Introduction
Specification
Downloads
Features
Support 16CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF IP video input
H.265S/H.265+/H.265/H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-type recording: manual / timed / motion / sensor / POS / AI recording
Playback : 16 CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as loitering detection,object abandoned/missing, region intrusion/entrance/exiting, line crossing, video exception, etc.
Express and flexible backup via USB, network and so on
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log view and device status view
4K HD output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS

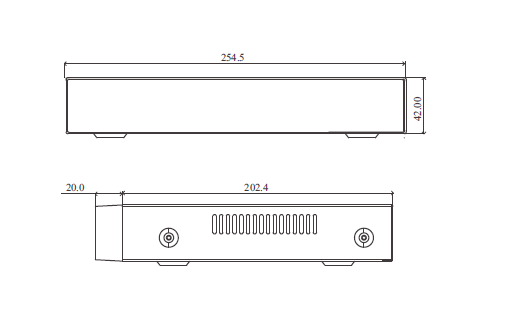

Dimension
| Model | TD-3016H1-A1 | |
| System | OS | Embedded Linux |
| Video | Network Input | 16 CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Output | HDMITM × 1 : 3840×2160/1920 ×1080/1280×1024/1024×768 VGA× 1 : 1920 ×1080/1280×1024/1024×768 HDMITM and VGA output the same video source | |
| Compression | H.265S / H.265+ /H.265 /H.264 | |
| Multi-screen Display | 1 / 4/6/8/9/13/16 | |
| Audio | Network Input | 16 CH IPC audio input |
| 2-way Audio | RCA ×1 | |
| Local Output | RCA ×1 | |
| Compression | G.711(U/A) | |
| Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024 /960P/720P/960H/ D1/CIF |
| Frame Rate | 30fps/25fps(NTSC/PAL) | |
| Playback | Simultaneous Playback | Max. 16 CH |
| Search | Time slice / time / event / tag /smart search | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/ Playback | 1× 8MP@30fps; 4×4MP@30fps; 9×720P@30fps; 16×D1@30fps |
| Alarm | Input | Support IPC alarm input |
| Output | Support IPC alarm output | |
| Triggering | Record, snapshot, preset, e-mail, etc. | |
| Network | Interface | RJ 45 1000Mbps × 1 |
| Protocol | TCP/IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP | |
| Incoming/ Outgoing Bandwidth | 128Mbps / 128Mbps *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. | |
| Client Connection | Max. 64 users access | |
| Face Detection | Face Detection Performance (AI by IPC) | 16 CH |
| Face Detection Performance (AI by Device) | No | |
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 16 CH |
| Human/Vehicle Classification (AI by Device) | No | |
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) | Yes |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client/mobile APP |
| Plate Recognition (AI by IPC) | Yes | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA3.0 × 1, max 10T per HDD (this limit varies depending on the environment temperature) |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | USB | USB 2.0 × 2 |
| Remote Controller | Optional | |
| Others | Power Supply | DC 12V/1.5A |
| Consumption | ≤ 5W ( without HDD ) | |
| Dimensions (mm) | 255 × 222 × 42 ( W × D × H ) | |
| Working Environment | -10 ～ 50 °C，10% ～ 90% humidity | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
