TD-7524TE3S(D/AR1) / TD-7524TE3S(D/AU/AR1)

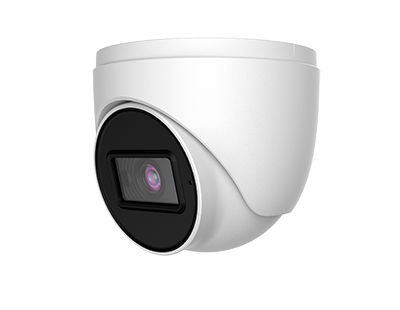

2MP HD Analog IR Turret Camera
TD-7524TE3S(D/AR1) Fxied Lens : 2.8mm
TD-7524TE3S(D/AU/AR1) Fxied Lens : 2.8mm
Introduction
Specification
Accessories
Downloads
Features
1080P real-time image, high resolution, true color
AHD / TVI / CVI lossless HD video output
Support 960H CVBS output
Up to 1000 TVL resolution
CMOS progressive scan, perfectly capturing the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night, digital WDR
Support noise reduction function
10 ~20m IR night view distance
IP67
Support coaxial audio transmission
Support COC
Dimension
| Model | TD-7524TE3S |
| Camera | |
| Image Sensor | 1 / 2.8 "CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Audio | 1CH built-in MIC |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| IR Distance | 10 ~20 m |
| Frame Rate | 30fps(60Hz); 25fps (50Hz) |
| Min. Illumination | 0.005lux@ F1.2, AGC ON; 0 lux IR |
| Lens | 2.8mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP 67 |
| Functions | |
| Function Control | OSD ( COC Control ) |
| Smart IR | Yes |
| Day & Night | ICR |
| Digital WDR | Yes |
| Digital DNR | Yes, 2D DNR |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front Light Compensation | NO |
| Defog | NO |
| HLC | Yes |
| Sharpness | Yes |
| Mirror | NO |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
| Others | |
| Power Supply | DC12V ( ± 15% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 4W |
| Working Environment | - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity) |
| Dimensions ( mm ) | Ф 94.6 x 82.8 |
| Weight ( net ) | Approx. 0.2KG |
