TD-8343IE3N(A/PE/04M/AR5)
4M 4x IR Network Active Deterrence 3inchMini PTZ
TD-8343IE3N(A/PE/04M/AR5) 4MP 4x Network active deterrence 3inch PTZ
Introduction
Specification

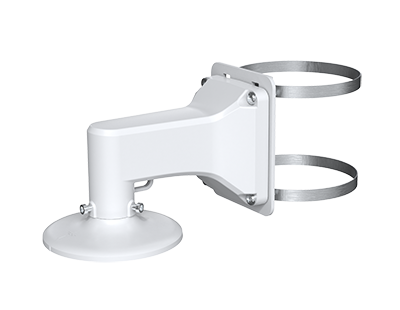

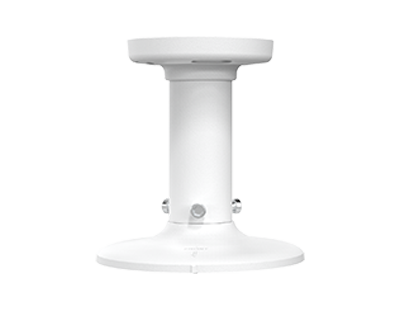

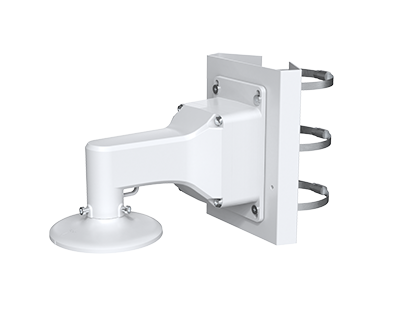

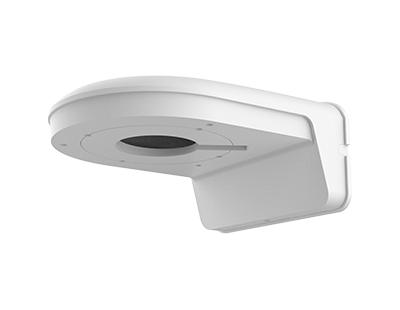

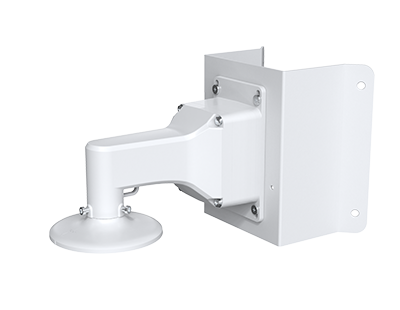

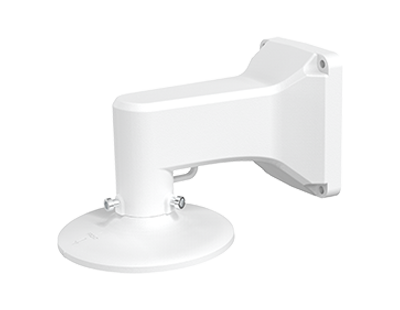

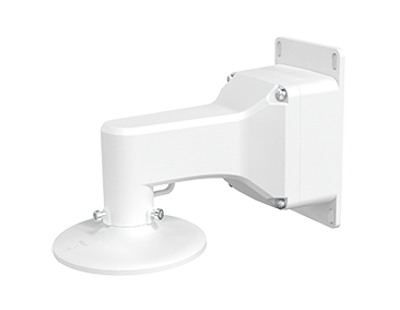

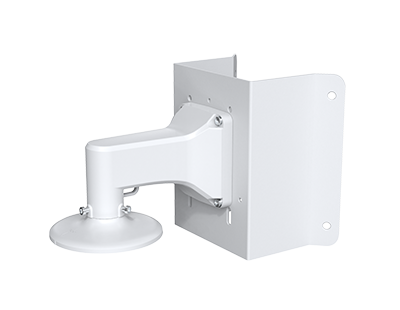

Accessories
Downloads
Features
Progressive scan BSI+NIR image sensor
Up to 2560x1440 resolution
Mini illumination:
Color: 0.01 lux @ (F1.6 AGC ON)
0 Lux with IR
4x optical zoom, fast and accurate
4 IR LEDs, 2 White LEDs
Built-in Mics &Speaker
30mfor audiblewarnings,7m for voice recording
AI-based human vehicle detection &classification and tracking, perimeter precaution, crossing line, etc.
SD/TF card chamber, Reset button, Alarm in/out
PoE+ or DC12V power supply, easy installation
IP66 Water-proof, IK10 vandalism proof.
Onvif, API, SDK, IE/NVR/VMS/free mobile Apps
Dimension
| Camera Module | |||||
| Image Sensor | 1/2.7″ progressive scan CMOS with BSI and NIR+ technology | ||||
| Max Resolution | 2560×1440 | ||||
| Mini. Illumination | Color：0.01 Lux @ (F1.6，AGC ON)；B/W：0.002Lux @(F1.6，AGC ON);0Lux with IR | ||||
| Image Setting | Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client | ||||
| Shutter Speed | 50Hz: 1/25s~1/25,000s, 60Hz: 1/30s~1/30,000s | ||||
| White Balance | Auto/Manual/Indoor/Outdoor | ||||
| Gain | Auto/Manual | ||||
| Day & Night | Auto/Manual | ||||
| Aperture Control | N/A | ||||
| S/N Ratio | ≥52dB | ||||
| 3D DNR | Auto/Manual | ||||
| AE Enhancement | BLC, HLC, WDR | ||||
| Privacy Mask | 4 Programmable privacy masks | ||||
| Picture Overlay | Logo picture could be overlaid on video with 128x128pixels,24bits JPG format | ||||
| Font Overlay | Max 15characters per line, 8lines max, white color or red color | ||||
| Lens | |||||
| Focus Length | f=2.8-12mm lens,4x optical | ||||
| Zoom Speed | About 1.6second(Wide->tele) | ||||
| Field of View | Horizontal: 97° to 31°±5%;Vertical: 51° to 18°±5%; Diagonal: 115° to 36°±5% (wide-tele) | ||||
| Working Distance | 1m to infinite (object to lens distance) | ||||
| Aperture Range | F1.6~ F2.7 (wide-tele) | ||||
| IRCut Filter | Electrical switchable ICR | ||||
| DORI table | Lens | Detect(25px/m) | Observe(63px/m) | Recognize(125px/m) | Identify(250px/m) |
| 2.8mm | 68m(223 f.t) | 27.1m(88.9 f.t) | 13.6m(44.6 f.t) | 6.8m(22.3 f.t) | |
| 12mm | 206.7m(678.1 f.t) | 82m(269 f.t) | 41.3m (135.5 f.t) | 20.7m(68f.t) | |
| PTZ | |||||
| Pan Range | 0~355° | ||||
| Pan speed | Configurable, from 0.5~80°/s; Preset speed: 80°/s | ||||
| Tilt Range | From -5° to 90° | ||||
| Tilt Speed | Configurable, from 0.5°~ 60°/s, Preset speed: 60°/s | ||||
| Pan/Tilt Action Interval | At least 10seconds, adjustable | ||||
| Proportional Zoom | Yes | ||||
| Preset | 360 | ||||
| Cruise | 8 cruises, up to 16 presets for each cruises | ||||
| Trace | 4 traces, record time over 3 minutes for each trace | ||||
| Power off Memory | Support | ||||
| Action Mode | Preset/Cruise/Trace/Auto Scan/Random Scan | ||||
| 3D Positioning | Support | ||||
| PTZ Position Display | Support | ||||
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot | ||||
| Supplement Light | |||||
| IR Distance | 4pcs of IR Array into 2 Groups, auto switch with zoom ratio | ||||
| Smart IR | Yes | ||||
| White light Distance | 2pcs of White LED Array | ||||
| White light Mode | Flush mode, torque mode | ||||
| Network | |||||
| Main Stream | 25fps (2560×1440, 2048×1536, 1920×1080, 1280×960, 1280×720);30fps (2560×1440, 2048×1536, 1920× 1080, 1280× 960, 1280× 720) | ||||
| Sub Stream | 25fps (704 × 576, 640 × 480, 352 × 288)；30fps (704 × 480, 640 × 480, 352 × 240) | ||||
| Third Stream | 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288)；30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) | ||||
| Video Compression | Smart H.265+/H.265/H.264+/H.264/MJPEG | ||||
| H.264 Encoder | H.264/AVC codec BP/MP/HP, level 5.1 | ||||
| H.265 Encoder | H.265/HEVC codec MP, level 5.0 | ||||
| Video Bit rate | 64Kbps ~ 16Mbps | ||||
| Audio Compression | G.711 A/U | ||||
| Audio Bit rate | 64Kbps | ||||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE | ||||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering | ||||
| Smart Features | |||||
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) | ||||
| Face Recognition | (Default N/A)human face detection capture, face comparing( per request) | ||||
| Road Traffic | Vehicle detecting and tracking, etc. | ||||
| Smart Detection | Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. | ||||
| Smart Tracking | Smart tracking of human or vehicle, auto/manual | ||||
| Active Deterrence | Flush strong white light and predefined voice upon invaders detected. | ||||
| Dual Way Talk | One way talk. | ||||
| System Integration | |||||
| Ext. Audio Interface | 1-ch audio input(mic in),2.0-2.4Vp-p,1kΩ±10%;1-ch audio output(line out),line level,impendance:600 Ω; | ||||
| Built-in Speaker | Yes, One Speaker, 4Ω, 2.5Watt. Rotation with camera, up to 30m distance audible | ||||
| Built-in MIC | 1channel, rotation with camera lens direction, up to 8m distance voice recordable. | ||||
| Audio Device Switch | Default use built-in speaker and MIC, manually switch to external | ||||
| Alarm Interface | 1CH alarm input(Dry contact); 1CH alarm output | ||||
| Alarm Linkage | Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. | ||||
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet (Support PoE+ ) | ||||
| Storage Slot | Standalone memory card chamber, support microSD/TF card, up to 256GB | ||||
| Serial Interface | N/A | ||||
| Auxiliary Video Out | N/A | ||||
| Reset button | Yes | ||||
| Heat and Fan | N/A | ||||
| Water Removal | Dust and Water-resistant coating | ||||
| API | ONVIF, support TVT SDK and third-party management platform | ||||
| Client | TVT N9000 1.4.5, TVT NVMS 2.0; and the third-party client, free iOS and Android App | ||||
| Web Browser | IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free | ||||
| General | |||||
| Languages | Czech; English, German; Hungarian ; Italian ; Japanese ; Korean ; Portuguese, Polish; Russian, Romanian, Spanish; Spanish(Mexico);Simplified Chinese; Turkish; Traditional Chinese. etc. | ||||
| Power | DC12V±20%,2000mA,orPoE+ (802.3.at,class 3), AVG 3.3W,MAX14.9W at day;18.9W at night(LED on+ Speaker on + PTZ working) | ||||
| Working Condition | -40°C ~ 55°C (-40°F ~ 131°F) IR off, -40°C ~ 40°C IR on; Cold start≥- 25°C(1Hour waiting), ≤90%RH | ||||
| Storage Condition | -40°C ~ 70°C ; ≤ 95% RH | ||||
| Protection | 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | ||||
| Shield Material | Main body: Aluminum Alloy(ADC12),Decoration: Polymer(Glass fiber and Plastic) | ||||
| Dimensions | ￠130mm x 162mmH (￠5.1′x 6.4′) | ||||
| Net Weight | Approx. 1.2Kg (2.645lb.) | ||||
| Certification | IP66,IK10,ROHS,CE,FC,UKCA | ||||
