TD-E2228-IC/TP
Face Recognition & Access Control Terminal
TD-E2228-IC/TP
Introduction
Specification
Accessories
Downloads
Features
8 inch touch screen
Max. rsolution: 2MP (1920×1080)
Face liveness detection technology distinguishing real faces from non-real face spoof attacks
Highly accurate face recognition using deep learning algorithm
Stand-alone device, ready for networking
Supports multiple door opening modes (card, card + password, card + face recognition, etc.)
Built-in IC card reader
Intelligent Analysis: video exception detection, face detection, face capture, face match, etc.

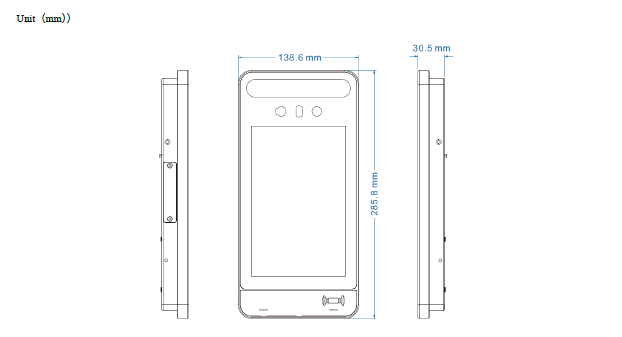

Dimension
| Model | TD-E2228-IC/TP |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | 1/2s ~ 1/100000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | 0 lux |
| Lens | 2MP dual lens; f=3.97mm @F1.6 |
| Vertical horizontal field of view: approx. 87°，horizontal field of view: approx. 44° | |
| Lens Mount | M12 |
| WDR | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| DNR | 2D/3D NR |
| Image | |
| Video Compression | H.265+/H.265/ H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Bit rate Type | VBR/CBR |
| Bit Rate | 64Kbps ~ 6Mbps |
| Resolution | 1080P(1920×1080), 720P(1280×720), D1, CIF, 480 ×240 |
| Main Stream | 60Hz: 1920×1080/1280×720(1~30fps); 50Hz:1920×1080/1280×720(1~25fps) |
| Sub Stream | 60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF(1~25fps) |
| Third Stream | 60Hz: D1 /CIF /480 ×240 (1~30fps); 50Hz: D1/CIF /480 ×240 (1~25fps) |
| Image Setting | Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, etc., adjustable through client or web browser |
| Audio Compression | G711A/U |
| Screen | |
| 8 inch Screen | Resolution: 800 (RGB) × 1280 |
| Brightness | 300cd/m2 |
| Card | |
| Card Type | Mifare card /Desfire card/FM1208 Card/Gicard |
| Card Reading Protocol | ISO14443A/B |
| Card Reading Frequency | 13.56MHz |
| Card Reading Duration | <1s |
| Card Reading Distance | 0~2cm |
| Interfaces | |
| Network | 100M RJ45 |
| Audio | Built-in MIC×1, built-in speaker×1 |
| Door Lock Output | 1CH |
| Exit Button | 1 CH |
| Door Contact Input | 1 CH |
| Anti-Tamper Interface | 1 CH |
| Reset Button | 1 |
| Alarm | 2CH alarm input; 2CH alarm output |
| USB | Yes |
| Storage | 1CH built-in micro SD card slot, up to 256G |
| RS485 | Yes |
| Wiegand Interface | Yes (Wiegand input or output configurable) |
| Function | |
| Remote Monitoring | IE browser/CMS remote control |
| Online Connection | Supports simultaneous monitoring for up to 10 users |
| Supports multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTPS, HTTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | IP address conflict, cable disconnection |
| Intelligent Analytics | Liveness Detection, face detection, mask detection, face capture, face match, scene change detection, video blur |
| detection, video cast detection | |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login, image distortion correction |
| White Light Distance | 0.3-1.5m soft light |
| IR Light Distance | 0.3-2m |
| Ingress Protection | IP66 |
| Face | |
| Height Range of Face Recognition | 1.2m-2.2m (the recommended installation height is 1.45m, based on the tester’s height of 170cm) |
| Face Recognition Distance | 0.3m-1.5m (the recommended face recognition distance is from 0.5m to 1m) |
| Face Detection | Pupil distance of a facial image over 20 pixel can be detected |
| Face Capture | Outputting the optimal face image by precise detecting, tracing, capturing, scoring and screening the moving faces |
| Original Image Capturing | Supports original image capturing and self-defined overlaid information (like device ID, time, etc.) |
| Face Picture Database | 50,000 |
| Face Comparison Storage | 30,000 |
| Database Management | Face pictures can be added, modified or deleted in the face database. |
| Face Picture Adding | Adding face pictures through face recognition terminal, WEB, face album manager tool, USB storage device import |
| Face Comparison Alarm | Face detection alarm, allow list, block list and stranger alarm |
| Intelligent Light Compensation | Built-in high efficient white light LEDs |
| Others | |
| Power | DC12V/1A |
| Power Consumption | < 12W |
| Environmental Protection | RoHS 2.0, REACH, WEEE, directive94/62/EC |
| Working Environment | -20℃~50℃, Humidity: less than 95% (non-condensing) |
| Dimensions(mm) | 285.8×138.6×30.5 |
| Weight (net) | Approx. 1.174 kg |
| Installation | Wall mounting; Standing on desktop; Pole mounting, etc. |
