TD-9525E3B
2MP IR Starlight Turret Network Camera
TD-9525E3B(D/AZ/PE/AR3) Motorized zoom lens：2.8~12mm
Introduction
Specification
Accessories
Downloads
Features
2MP ( 1920 × 1080 ) @30fps
H.265+/H.265/H.264+/H.264/MJPEG coding
ICRautoswitch, true day / night vision
30 ~ 50m IR night view distance
Starlight
Motorized zoom lens
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support corridor mode
Support electronic image stabilization
Support image distortion correction
1CH audio input and 1CH built-in MIC
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP67 ingress protection
Support three streams
Support mobile surveillance by smart phones & tablet PCs with iOS andAndroid OS
Intelligent analytics

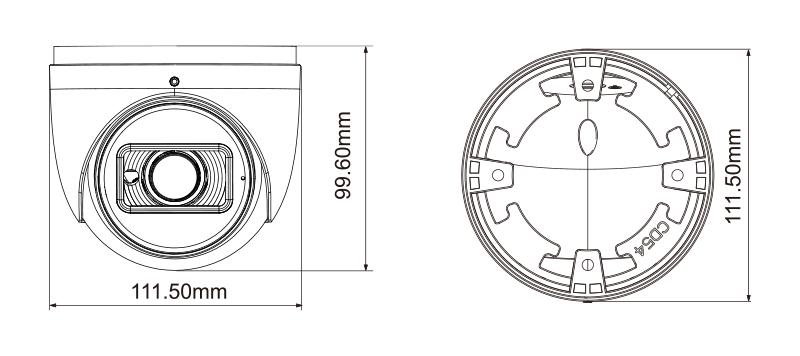

Dimension
| Model | TD-9525E3B | |||
| Camera | ||||
| Image Sensor | 1 / 2.8" CMOS | |||
| Image Size | 1920 × 1080 | |||
| Electronic Shutter | Auto/Manual mode; manual: 1 / 3 s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | |||
| Min. Illumination | 0.0038 lux@F1.4,AGC ON; 0 lux with IR | |||
| Lens | 2.8~12mm@F1.4, motorized | |||
| Field of View | Horizontal: 100°~31° ; Vertical: 53°~17°; Diagonal:119°~36° | |||
| Lens Mount | Φ14 | |||
| Day& Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| EIS | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 /H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 1080P(1920×1080 ), 720P(1280×720 ), D1, CIF, 480×240, VGA(640×480) | |||
| Main Stream | 1080P/720P(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Sub Stream | 720P/D1/CIF/VGA(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Third Stream | D1/CIF/480×240/VGA(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Bit Rate | 64 Kbps ~ 6 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | No | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Target Counting | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 43.32m(142.12ft) | 17.33m(56.85ft) | 8.66m(28.41ft) | 4.33m(14.20ft) |
| 2.8~12mm(T) | 144.53m(474.17ft) | 57.81m(189.66ft) | 28.91m(94.84ft) | 14.45m(47.40ft) |
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, QoS | |||
| Interface Protocol | ONVIF(profile S, G, T, M) | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, cable disconnection | |||
| General Function | Watermark, video mask, heartbeat, corridor pattern | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 30 ~ 50 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 10.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Ø111.5 × 99.6 | |||
| Weight ( net ) | Approx. 0.67KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
