TD-9444M3
4MP AI Bullet Network Camera
TD-9444M3(D/AZ/PE/AR7) Motorized lens: 2.8~12mm
Motorized lens: 8~32mm
Introduction
Specification

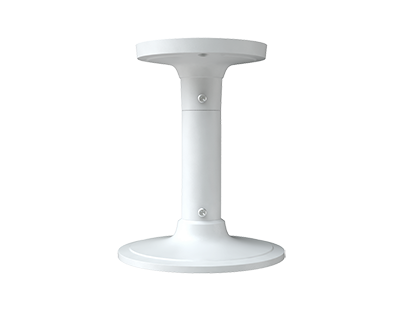

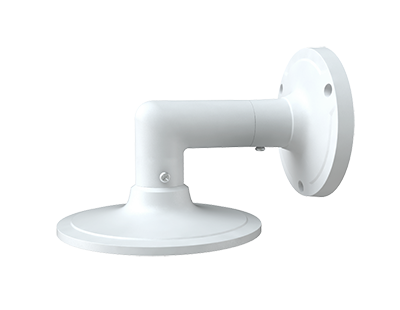

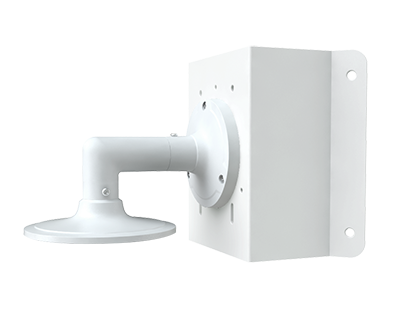

Accessories
Downloads
Features
Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG coding
Max. resolution: 2592 × 1520
Starlight
ICR auto switch, true day / night vision
Up to 100m IR night view distance; motorized zoom lens
3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart IR and ROI coding
Support image distortion correction
Built-in micro SD card slot; up to 256GB
AC24V/DC12V/PoE power supply
IP 67 & IK10
Support three streams
Face Recognition & License Plate Detection
Dimension
| Model | TD-9444M3 | |||
| Camera | ||||
| Image Sensor | 1 / 1.79 "CMOS | |||
| Image Size | 2592 × 1520 | |||
| Electronic Shutter | 1/3 s ~ 1 / 10000 s | |||
| Iris Type | P Iris | |||
| Min. Illumination | 0.007 lux@F1.4,AGC ON; 0 lux with IR | |||
| Lens | 2.8~12mm@F1.36~F2.0, motorized | 8~32mm@F1.7, motorized | ||
| Field of View | H:114.2°~47.94°; V: 59.36°~27.07°; D: 141.1°~55.09° | H: 40.6°~14°; V: 22.6°~9°; D: 47.3°~16° | ||
| Lens Mount | Integrated | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 | |||
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | ||||
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | ||||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |||
| Main Stream | 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) | ||||
| Sub Stream | 720P/D1/CIF/480 × 240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | D1/CIF/480 × 240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, Image Flip, Image Mirror, etc. adjustable through client software or web browser | |||
| ROI | 8 ROI; Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 | |||
| Video Output | CVBS output (BNC × 1, 1Vpp, 75 Ω) | |||
| Audio | 1CH audio input; 1CH audio output | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| RS 485 | Yes | |||
| DC12V Output | Yes(Max. output current: 200mA) | |||
| Intelligent Analytics (Smart Events) | ||||
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) | |||
| Statistics | Target counting by line/ area, heat map | |||
| Exception Detection | Scene change, video blur and video cast detection | |||
| Face Recognition | Face detection, face capture, face match | |||
| License Plate Detection | Yes | |||
| Other Events | Crowd density detection, abandoned/missingobject detection | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 53.34m(175ft) | 21.34m(70.01ft) | 10.67m(35ft) | 5.33m(17.48ft) |
| 2.8~12mm(T) | 126.29m(414.33ft) | 50.51m(165.71ft) | 25.26m(82.87ft) | 12.63m(41.43ft) |
| 8~32mm(W) | 150.77m(494.65ft) | 60.31m(197.86ft) | 30.15m(98.91ft) | 15.08m(49.47ft) |
| 8~32mm(T) | 413.97m(1358.16ft) | 165.59m(543.27ft) | 82.79m(271.62ft) | 41.40m(135.82ft) |
| Functions | ||||
| Client Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | IE (plug-in required)/Google Chrome/Edge/Firefox/Safari | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, corridor pattern | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 70~ 100 m | |||
| Ingress Protection | IP67 & IK10 | |||
| Others | ||||
| Power Supply | AC24V/DC12V/PoE | |||
| Power Consumption | < 14W | |||
| Operating Environment | - 50 °C ~ 60 °C (-58°F~140°F); Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | - 50 °C ~ 65 °C (-58°F~149°F); Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 411.9 × 155.3 ×188 | |||
| Weight ( net ) | Approx. 2.762KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
