TD-3004H1-4P-A1L/TD-3008H1-8P-A1L
4/8 CH PoE NVR
This series supports 4/8 CH 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P high definition IP video input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
This series integrates with 4/8 PoE network ports , simultaneous 4/8 CH playback,and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Introduction
Specification
Downloads
Features
Support 4/8 CH 8MP/6MP/5MP/4MP/3MP/1080P/ 960P/720P/DI/CIF IP video input
H.265S/H.265+/H.265/H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-type recording: manual / timed / motion / sensor / POS / AI recording
Playback : 4 /8CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as loitering detection, object abandoned/missing, region intrusion/entrance/exiting, line crossing, video exception, etc.
Express and flexible backup via USB, network and so on
DHCP, DDNS, PPPoE network protocol
4/8 PoE network ports; IPCs can be directly connected to NVR; PoE power supply supported
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log view and device status view
4K HD output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS

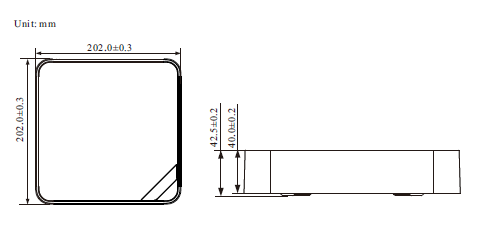

Dimension
| Model | TD-3004H1-4P-A1L | TD-3008H1-8P-A1L | |
| System | OS | Embedded Linux | |
| Video | Network Input | 4 CH IPC input | 8CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | ||
| Output | HDMITM × 1 : 3840×2160/1920 × 1080 / 1280 × 1024/ 1024 × 768 | ||
| Compression | H.265S / H.265+ /H.265 /H.264 | ||
| Multi-screen Display | 1/4 | 1 / 4 / 6 / 8 / 9 | |
| Audio | Network Input | 4 CH IPC audio input | 8 CH IPC audio input |
| 2-way Audio | No | ||
| Local Output | No (HDMITM supports the audio output) | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | |
| Frame Rate | 30fps/25fps(NTSC/PAL) | ||
| Playback | Simultaneous Playback | Max. 4 CH | Max. 8 CH |
| Search | Time slice / time / event / tag /smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View/ Playback | 1× 8MP@30fps; 4×1080P@30fps; | |
| Alarm | Type | Manual, sensor, motion, exception, smart events, etc. | |
| Input | Support IPC alarm input | ||
| Output | Support IPC alarm output | ||
| Triggering | Record, snapshot, preset, e-mail, etc. | ||
| Network | Interface | RJ 45 100Mbps × 1 | |
| Protocol | TCP/IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP | ||
| Incoming/ Outgoing Bandwidth | 40 Mbps/64Mbps | 64 Mbps/64Mbps | |
| *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. | |||
| Client Connection | Max. 64 users access | ||
| Face Detection | Face Detection Performance (AI by IPC) | 4 CH | 8 CH |
| Face Detection Performance (AI by Device) | No | ||
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 4 CH | 8 CH |
| Human/Vehicle Classification (AI by Device) | No | ||
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) | Yes | |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client/mobile APP | |
| Plate Recognition | No | ||
| Other AI Events (AI by IPC) | Loitering detection, abandoned/missing object detection, video exception detection | ||
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA3.0 × 1, max 10T per HDD (this limit varies depending on the environment temperature) | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| Port | USB | USB 2.0 × 2 | |
| Remote Controller | No | ||
| PoE | PoE Ports | 100M RJ45 × 4 | 100M RJ45 × 8 |
| Standards | IEEE802.3AF/AT | ||
| Output Power | ≤ 36W | ≤ 72W | |
| Others | Power Supply | DC 48V/1A | DC 48V/1.8A |
| Consumption | ≤ 5W ( without HDD, and PoE off ) | ||
| Dimensions (mm) | 202 × 202 × 42.5 ( W × D × H ) | ||
| Working Environment | -10 ～ 50 °C，10% ～ 90% humidity | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | ||
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
