TD-9525S4-C Motorized Zoom Lens
2MP Dual Illumination Water-proof Turret Network Camera
TD-9525S4-C(D/AZ/PE/AW3) Motorized zoom lens : 2.8-12mm
Introduction
Specification
Accessories
Downloads
Features
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution:2MP ( 1920 × 1080)
Auto day/night switch
3D DNR , HWDR , HLC , BLC , etc .
ROI coding
Support smart supplement light
30 ~40m white light view distance;30 ~40m IR view distance
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support NAT function
Support SMD
Support line crossing detection , region intrusion detection , abandoned/missing object detection , video exception detection

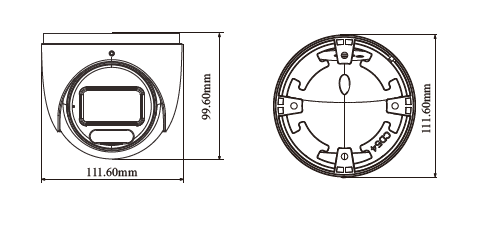

Dimension
| Model | TD-9525S4-C | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 "CMOS | |||
| Image Size | 1920×1080 | |||
| Electronic Shutter | 1/3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min . Illumination | 0.006 lux @F1.4,AGC ON; 0 lux with illumination on | |||
| Lens | 2 .8~12mm@F1 .4, motorized zoom lens, H.FoV: 98°~33°;V.FoV: 52 °~20°; D.FoV: 120°~ 40° | |||
| Lens Mount | Ø14 | |||
| Wide Dynamic Range | 120dB | |||
| Day&Night | ICR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0 °~360 °; Tilt:0°~80°;Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 1080P (1920 × 1080), 720P (1280 × 720), D1,VGA (640× 480), 480× 240, CIF | |||
| Main Stream | 1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Third Stream | D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~ 6 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Mirror, Image Flip,NR, etc . Adjustable through client software or web browser | |||
| Audio Compression | G711A/U | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ4510/100 Base-T | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP,NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802 .1x, SNMP, UPnP, HTTP, HTTPS , HTTP POST,NAT, QoS | |||
| Interface Protocol | ONVIF | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, video exception | |||
| Smart Event | Line crossing/region intrusion (human/vehicle classification), abandoned/missing object detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat,ANR, cloud upgrade, smart supplement light, corridor pattern, disarming | |||
| PoE | Yes (IEEE802.3af) | |||
| Supplement Light Range | IR range: 30 ~ 40 m; white light range:30 ~ 40 m | |||
| Ingress Protection | IP67 | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock,IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Indentify |
| 2.8~12mm(W) | 44m(144ft) | 18m(58ft) | 9m(28ft) | 4m(14ft) |
| 2.8~12mm(T) | 123m(402ft) | 49m(160ft) | 25m(80ft) | 12m(39ft) |
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | DC12V: < 6 .9W; PoE: < 8 .8W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 111.6 × 99.6 | |||
| Weight ( net ) | Approx . 0.66KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
