TD-9322A3-FR

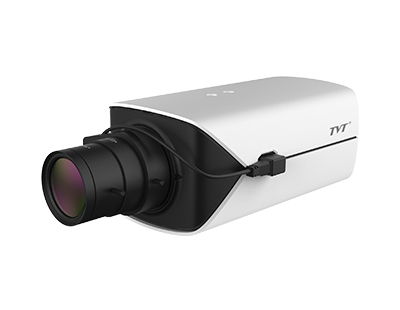

2MP HD Face Recognition Box Network Camera
TD-9322A3-FR Lens Mount:CS
Introduction
Specification
Accessories
Downloads
Features
Starlight, area light
1080P ( 1920 × 1080 ) @30fps
Support SMART H.265/H.264 coding
3D DNR, true WDR, HLC, BLC and ROI coding
Built-in micro SD card slot, up to 256GB
1CH built-in MIC; 1CH audio input; 1CH audio output
2CH alarm input; 2CH alarm output
USB× 1; RS 485× 1; ABF; Reset
AC24V/DC12V/PoE power supply
Support face exposure
P2P function optional
Support three streams Support mobile surveillance by smart phones or tablet PCs with iOS and Android OS
Intelligent analytics: abnormal video signal detection(scene change, video blur detection, video color cast detection), face detection, face capture, face match

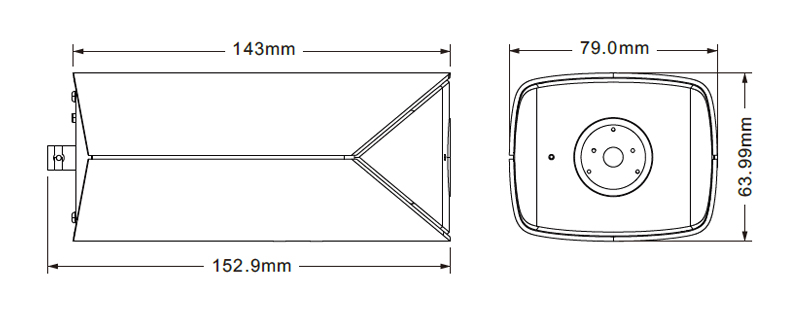

Dimension
| Model | TD-9322A3-FR |
| Camera | |
| Image Sensor | 1 / 2.8" CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s |
| Iris Type | DC-IRIS |
| Min. Illumination | 0.0026 lux@F1.2, AGC ON |
| Lens Mount | CS |
| ABF | Yes |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Image | |
| Video Compression | Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 1080P/720P (60Hz:1~30fps; 50Hz:1~25fps) |
| Sub Stream | 720P/D1/CIF/480 ×240 (60Hz:1~30fps; 50Hz:1~25fps) |
| Third Stream | D1/CIF/480 ×240 (60Hz:1~30fps; 50Hz:1~25fps) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser |
| Audio Compression | G711A/U |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| Alarm | 2CH alarm input; 2CH alarm output |
| USB | USB port × 1 |
| RS 485 | Yes |
| Functions | |
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection; Sensor alarm; SD card full; SD card error; IP address conflict; Network disconnection |
| Intelligent Analytics | Face detection, face capture, face match, video blur detection, abnormal color detection, scene change detection |
| General Function | Watermark, video mask, heartbeat, corridor pattern, face exposure |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, failure login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP |
| PoE | Yes (802.3af) |
| Face Detection | |
| Face Detection | Pupil distance of a facial image over 20 pixel can be detected |
| Face Capturing | Output the most effective face snapshots by precise detecting, tracing, capturing, scoring and screening the moving faces |
| Panorama Capturing | Support panorama capturing and self-defined information overlay, like device ID, time, etc. |
| Intelligent Light Compensation | No(external supplementary light sources are needed) |
| Face Picture Database | 10000 face pictures |
| Database Management | Add, modify, delete and search face pictures |
| Face Picture Adding | Add face pictures through WEB and Face Album Manager Tool |
| External Face Picture Enrollment | Size: less than 70KB Format: jpg, jpeg |
| Face Picture Comparison Alarm | Support face trigger modes ，Support allow list, block list, stranger alarms |
| Others | |
| Power Supply | AC24V/DC12V/PoE |
| Power Consumption | < 5.5W |
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 143 × 79 × 64 |
| Weight ( net ) | Approx. 0.65KG |
| Installation | Wall mounting; ceiling mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
